canvas入门

文档:https://developer.mozilla.org/en-US/docs/Web/API/Canvas_API/Tutorial

创建canvas画布的两种方法

<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <title>创建canvas画布的两种方法</title>
</head>
<body>
<!--方法1: 通过标签来创建-->
<canvas id="canvas1" width="100" height="100" style="background: black"></canvas>
<script>
    <!--方法2: 通过js来创建-->
    const canvas = document.createElement('canvas');
    canvas.id = 'canvas2';
    canvas.width = 200;
    canvas.height = 200;
    canvas.style.background = 'red';
    document.body.appendChild(canvas);
</script>
</body>
</html>

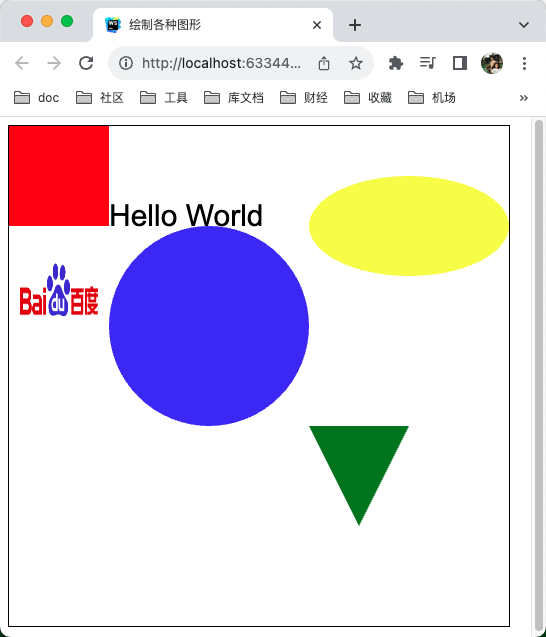

绘制各种图形

<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <title>绘制各种图形</title>
</head>
<body>
<canvas id="canvas1"></canvas>
<script>
    const canvas = document.getElementById('canvas1')
    canvas.width = 500
    canvas.height = 500
    // canvas.style.background = 'red'
    canvas.style.border = '1px solid black'
    const ctx = canvas.getContext('2d')
    // 绘制矩形
    ctx.fillStyle = 'red'
    ctx.fillRect(0, 0, 100, 100)
    // 绘制圆形
    ctx.beginPath()
    ctx.arc(200, 200, 100, 0, Math.PI * 2)
    ctx.fillStyle = 'blue'
    ctx.fill()
    ctx.closePath()
    // 绘制椭圆
    ctx.beginPath()
    ctx.ellipse(400, 100, 100, 50, 0, 0, Math.PI * 2)
    ctx.fillStyle = 'yellow'
    ctx.fill()
    ctx.closePath()
    // 绘制三角形
    ctx.beginPath()
    ctx.moveTo(300, 300)
    ctx.lineTo(400, 300)
    ctx.lineTo(350, 400)
    ctx.closePath()
    ctx.fillStyle = 'green'
    ctx.fill()
    // 绘制文字
    ctx.font = '30px Arial'
    ctx.fillStyle = 'black'
    ctx.fillText('Hello World', 100, 100)
    // 绘制图片
    const img = new Image()
    img.src = 'https://www.baidu.com/img/bd_logo1.png'
    img.onload = function () {
        ctx.drawImage(img, 0, 100, 100, 100)
    }
</script>
</body>
</html>

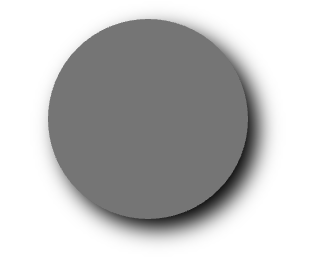

绘制阴影

<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <title>使用阴影</title>
</head>
<body>
<canvas id="canvas1"></canvas>
<script>
    const canvas = document.getElementById('canvas1')
    canvas.width = 500
    canvas.height = 500
    // canvas.style.background = 'red'
    canvas.style.border = '1px solid black'
    const ctx = canvas.getContext('2d')
    ctx.beginPath()
    ctx.shadowBlur = 20
    ctx.shadowColor = 'black'
    ctx.shadowOffsetX = 10
    ctx.shadowOffsetY = 10
    ctx.arc(200, 200, 100, 0, Math.PI * 2)
    ctx.fillStyle = 'grey'
    ctx.fill()
    ctx.closePath()
</script>
</body>
</html>
